JQR-01A Lipgloss Mascara Filling and Capping Machine

This machine is design for filling mascara and lip gloss.

Dimension : 3725*1660*2120MM(L*W*H)
Voltage : AC 380V(220V),3P,50/60Hz
Power : 2 KW
Working pressure : 0.6-0.8Mpa
Company:
Email:
Message:


This machine is used for filling mascara, lipgloss, foundation liquid and other cosmetic products. It adopts piston type quantitative filling, tank is designed with pressuring system for mascara product, easy to operate and clean.

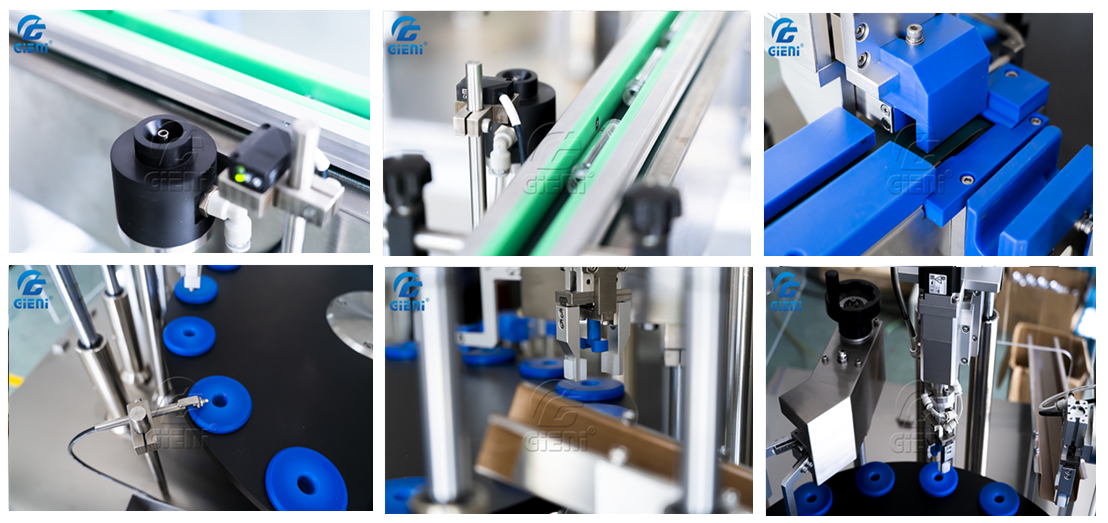

Filling intergrated in one unit type.

Auto container feeding from conveyor

 Auto Filling( with detector, no bottle no filling)

Auto wiper feeding and press

Auto brush feeding from brush racker

auto capping and taking out





ModelJQR-01A
Outder Dimension3725 x 1660 x 2120mm (L * W * H )
VoltageAC380V(220V), 3P, 50/60HZ
Power2 KW
Air Supply0.6-0.8Mpa
Filling Volume5-30ml
Bottle Diameter15-55min
Output40pcs/min
Weight1300kgs
