JR-02 M L Semi-Auto Rotary Type Mascara Lipgloss Filling Machine

JRM is a kind of semi-auto filling machine for mascara and lipgloss. The process section is including auto filling, automatic wipers inserting, brush inserting and capping device

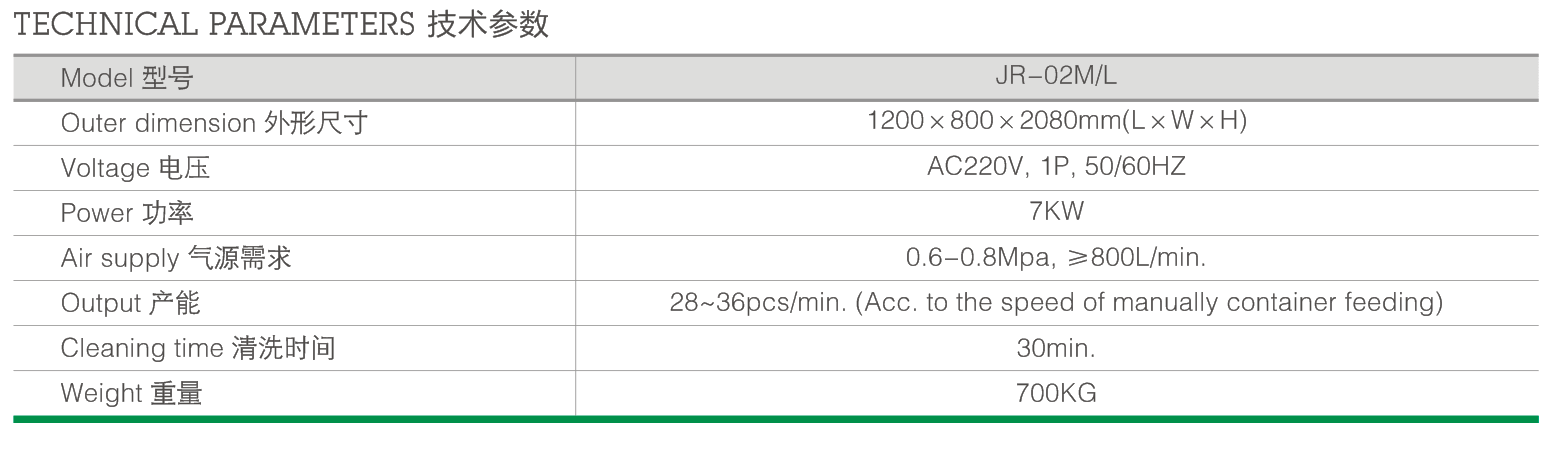

Dimension : 1200*800*2080mm
Voltage : 220V,1P,50/60HZ
Power : 7 KW
Working pressure : 0.6~0.8Mpa,≥800L/min
Company:
Email:
Message:

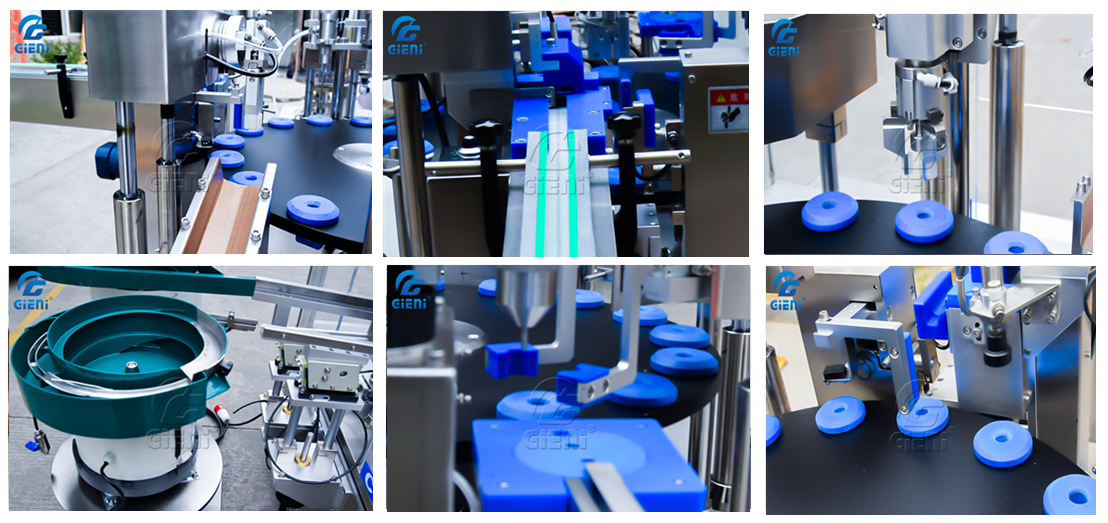

JRM is a kind of automatic filling machine for mascara and lip gloss.The process section is including auto filling, steel ball inserting, blush inserting and capping device.





Working Process:

Manual packaging putting->Auto Filling(2PCS)->Auto steel ball inserting->Manual blush feeding to vibration hopper->Auto brush inserting->Auto capping->Auto push finished product to conveyor->Auto transfer to weigh checker->Auto weigh checking

◆ With auto wipers input, wipers checking, and capping function. Also it has option on pragram to set functions.
◆ Mateial tank is 15 L, with heating, mixing, and pressuring functions.
◆ This machine adopts piston filling system. filling parameter is able to set on touch screen.
◆ This machine is made from servo motor driven, materials sucking, lifting and capping system.
◆ Wipers are fed through vibration table.
◆ With weigh checking device to remove over weight products and not enough product.
