JQR-02M L Auto Rotary Type Mascara Lipgloss Filling Machine

This is automatic rotary type mascara lip gloss filling and capping machine.

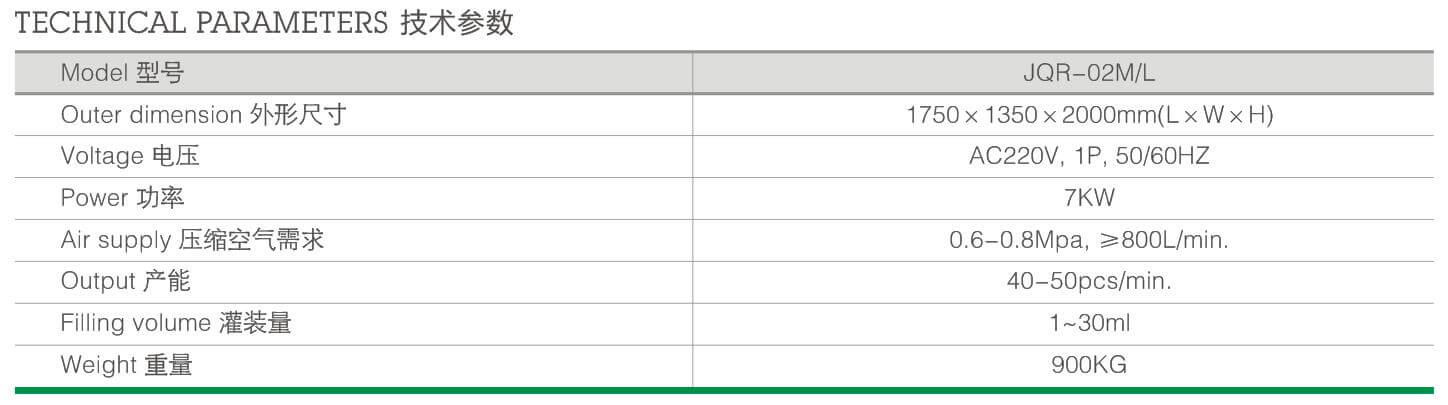

Dimension : 1750 x 1350 x 2000mm ( L x W x H )
Voltage : AC220V,1P,50/60HZ
Power : 7KW
Working pressure : 0.6~0.8Mpa,≥800L/min

This is an automatic rotary type filling and capping machine for mascara, lip gloss and similar products.

The working flow is listed below:

manually place the container onto conveyor---auto container feeding-----auto 2 nozzle filling---auto wiper feeding----auto wiper press-----manually place brush cap onto conveyor-----auto brush cap feeding------auto capping device-----discharge outlet

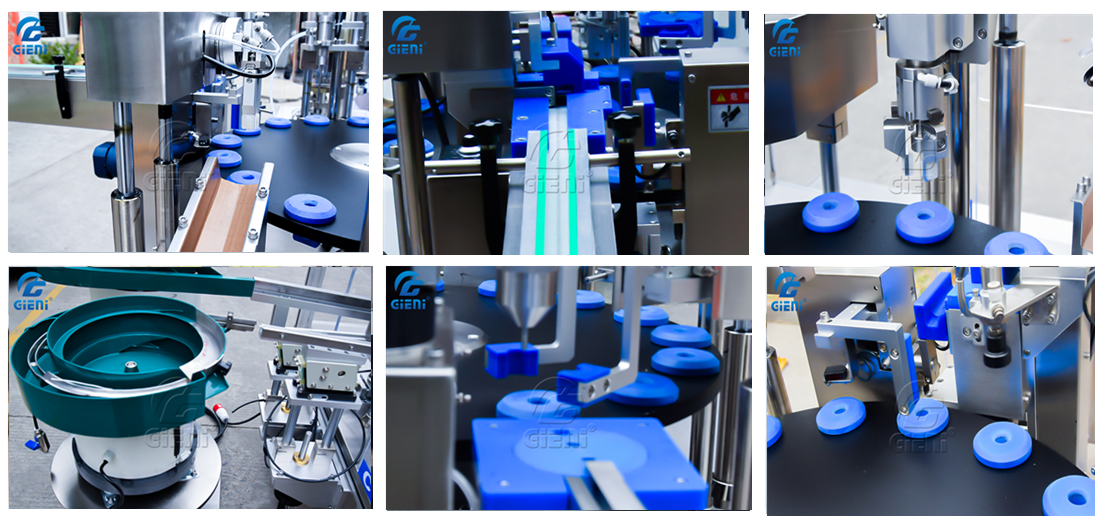

◆ With functions of tube detection, auto tube loading, auto filling, wipers sorting, auto wipers feeding, wipers detection, auto wipers pressing, auto brush cap feeding, brush cap detection, auto capping and finished product discharging.
◆ The rotary table with magnetic cups on it which is easy for replacing.
◆ Servo filling system can easily switch between different filling modes.
◆ Tank has the functions of stirring, pressuring, heating and heat preservation.
◆ The application of the manipulator to grasp tube, wiper and brush cap ensures the stability of the whole machine.
◆ Servo capping can prevent the cap from scratching, the torque can be adjusted easily.
