JLG 10 Nozzle Silicone Lipstick Preheating&Filling Machine

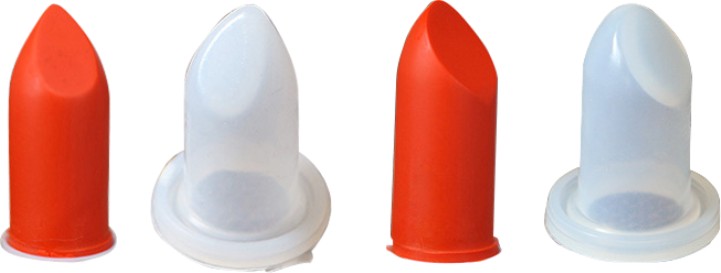

The machine is designed for many kinds of lipstick, suitable filling for silicone mould lipstick, and available to customize switching into 12 nozzles and fill metal mould lipstick as well.

Dimension : 1300*1050*2200mm
Voltage : AC220V,60HZ,1P,20A
Power : 3.8KW
Working pressure : 4~6kg/cm2
Company:
Email:
Message:


The machine is designed for many kinds of lipstick, suitable filling for silicone mould lipstick, and available to customize switching into 12 nozzles and fill metal mould lipstick as well.






l        20L Heating Tank adopts dual jacket layer design; The temperature and stirring speed are

        adjustable.

l        Fill 10 pcs each time with 10 nozzles.(can be changed to 12 nozzles)

l        Piston filling system is driven by step motor with numerical control, rotating valve is driven by

         cylinder;

l        Stirring device is driven by motor.

l        Mold lifting function is driven by step motor and numerical control.

l        Color human-machine touch panel interface and omnibearing numerical control. Operation is easy            and precise.

l        Filling precision is ±0.1g.

l        Can fill irregularity bottles.

l        The machine is designed with preheating system.













Model
JLG-10
Dimension1300*1050*2200MM
VoltageAC220V,60HZ,1P,20A,3.8KW
Capacity5-7moulds/min(according to the size of container)
Bucket Volume20L
Filling Volume14ML
Weight260KG
Air Consumption4-6KG/CM2
