FSM-4 4 Nozzles One-Body Silicone Marble Lipstick Filling Production Line

This filling line is specially designed for full-body silicone mold lipstick production, can make single or dual color filling (marble lipstick available)

Dimension : 7360X2250X2385mm (LxWxH)
Voltage : AC380V,3P,50/60HZ
Power : 32KW
Working pressure : 0.6~0.8Mpa, ≥800L/min.
Company:
Email:
Message:

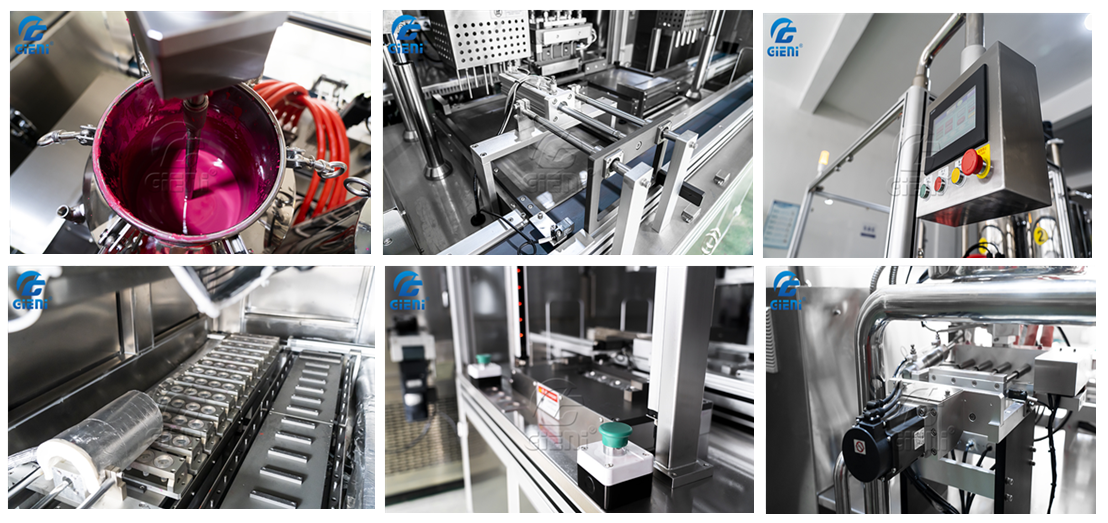

This filling line is specially designed for full body  silicone  mold  lipstick  production, can  make  single  or dual color filling (marble lipstick available)


Pre-heating device
1. Adopts Switzerland brand LEISTER Hot Air Gun, blow rate and heating rate are adjustable
2. With lift up and down function, controlled by cylinder
3. Height adjustable
Filling machine (4 nozzles)
1. Two 20L 3-layer stainless steel tank, inner layer is SUS316L.
2. With heating, mixing and vacuum function, mixing speed adjustable.
3. Tank is able to be lifted up/down automatically.
4. Fully servo motor control, fill precision & volume adjustable
5. Filling nozzle with heat preservation and anti-drip functions.
Cooling Unit
1. Temperature range max -20℃
2. Cooling time is adjusable from the mold moving speed.
3. Adopted France brand compressor, environmental refrigenrant medium RAR04A, quality guarantee.
Demolding Unit
1. Vacuum type
2. Grasper the container 4 pcs at a time
3. Rotary cylinder control the grasper's rotating
4. Two-stage vacuum system to release lipstick out of silicone rubber.
5. Lipstick Container Holder automatically to conveyor
Demolding Unit
1. Servo type Screw Down

Model:

FSM-4

Outer dimension

7360X2250X2385mm (LxWxH)

Voltage

AC380V,3P,50/60HZ

Power

32KW

Air consumption

0.6~0.8Mpa, ≥800L/min.

Output

720-960pcs/hour

Filling range

2~14ML

Weight

1400kg

Operator

2~3 persons
