FSM-5 One-body Silicone Lipstick Molding Machine

This filling line is specially designed for full-body silicone mould lipstick production.

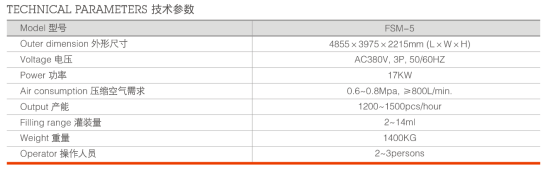

Dimension : 4855 x 3975 x 2215mm ( L x W x H )
Voltage : AV380V,3P,50/60HZ
Power : 17KW
Working pressure : 0.6~0.8Mpa, ≥800L/min.
Company:
Email:
Message:



This filling line is specially designed for full-body silicone mould lipstick production.


◆ 20L three layer stainless steel tank, inner layer SUS316L.

 With heating, mixing and vacuum function;

 Mixing speed is adjustable.

◆ Tank is able to be lifted up/down automatically;

◆ Servo Filling and mold lifting, easily adjust the filling volume.

Filling precision:±0.1g.

◆ Filling nozzle with heat preservation and anti-drip functions.

Cooling time is adjustable from the mold moving speed.

Cooling temp. at -15 to -18 degree. (varies from the environment).

◆ Chiller adopts France brand compressor, environmental refrigerant medium R404A.
