JLG 10 Nozzles Lipstick Filling Machine

The machine is designed for kinds of lipstick, suitable filling for silicone mould lipstick, and available to customize switching into 12 nozzles and fill metal mould lipstick as well.

Dimension : 1300 x 1050 x 2180mm (L x W x H)
Voltage : AC220V,1P,50/60HZ
Power : 10KW
Working pressure : 0.6~0.8Mpa,≥300L/min
Company:
Email:
Message:


The machine is designed for kinds of lipstick, suitable filling for silicone mould lipstick, and available to customize switching into 12 nozzles and fill metal mould lipstick as well.

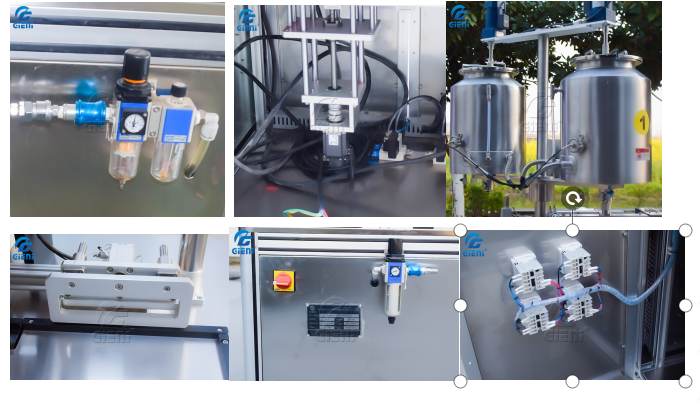

◆ 20L Heating tank adopts dual jacket layer design. The temperature and stiring speed are adjustable.

Fill 10 pcs each time with 10 nozzles.(can be switched into 12 nozzles).

Piston filling system is driven by servo motor with numerical control. rotary valve is driven by air cylinder.

Stirring device is driven by motor.

Mould lifting function is driven by step motor and numerical control.

Color human-machine touch panel interface and omnibearing numerical control. Operation is easy and precise.

Filling precision is ±0.1g.

Can fill irregularity bottles.



JLG -10 NOZZLES SILICONE LIPSTICK FILLING MACHINE

Model:

JLG-10

Outer dimension

1300x1000x2180mm (L x W x H)

Voltage

AC220V,1P,50/60HZ

power

10KW

Air supply

0.6~0.8Mpa,≥300L/min

Output

                      A.Metal mold:2160-3600pcs/hour;                              B. Silicone mold:1800-3000pcs/hour

Filling volume

14ml

Tank volume

20L

Weight

260kg
