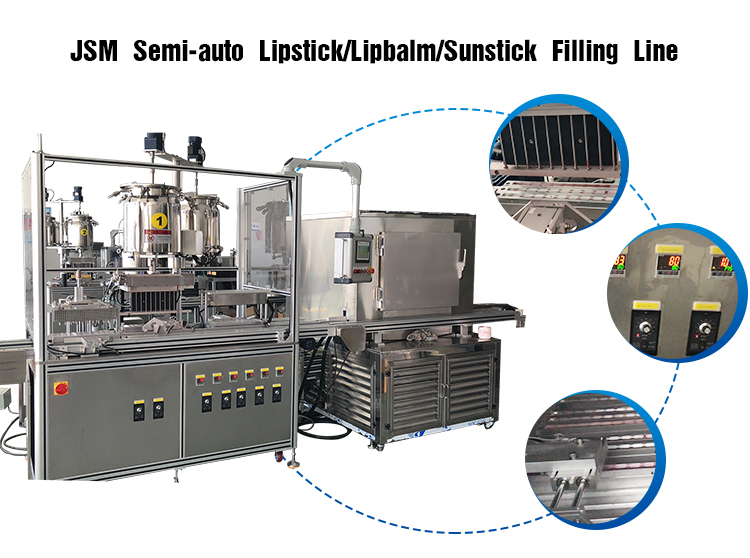

JSM Half-Silicone Aluminum Lipstick Mold Filling Production Line

This Production line is designed for half-body silicone mold and aluminum lipstick mold.

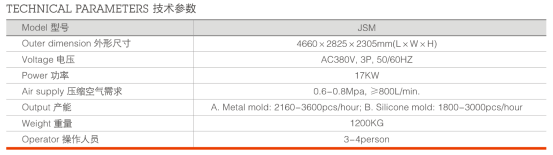

Dimension : 4660 x 2825 x 2305mm (L x W x H)
Voltage : AC380V,3P,50/60HZ
Power : 17kw
Working pressure : 0.6~0.8Mpa, ≥800L/min.
Company:
Email:
Message:


This Production line is designed for half-body silicone mold and aluminum lipstick mold, lipstick shape could be varies. It can fill those soft or high viscosity raw material which contains pearl etc. Meanwhile it can be used for back-filling and lipbalm filling.


Human-machine interface, touch screen control, easy opeation。

20L Three layer tank with SUS304 material, and the Inner layer material is SUS316L:
Tank is able to be lifted up/down automatically;

Adopts Swiztlerland Leister Gun for pre-heating, lamp pipe for remelting the shrinking hole after filling.
