JMP08 Powder Pulverizer

used for pulverizing those dry and brittle material in cosmetic,chemical,pharmacy,industries.

Dimension : 1465mm×570mm×1670mm
Voltage : 380V,3P,50/60HZ
Power : 7.5kw
Working pressure :
Company:
Email:
Message:


It is specially used for pulverizing those dry and brittle material in cosmetic, chemical, pharmacy, industries.

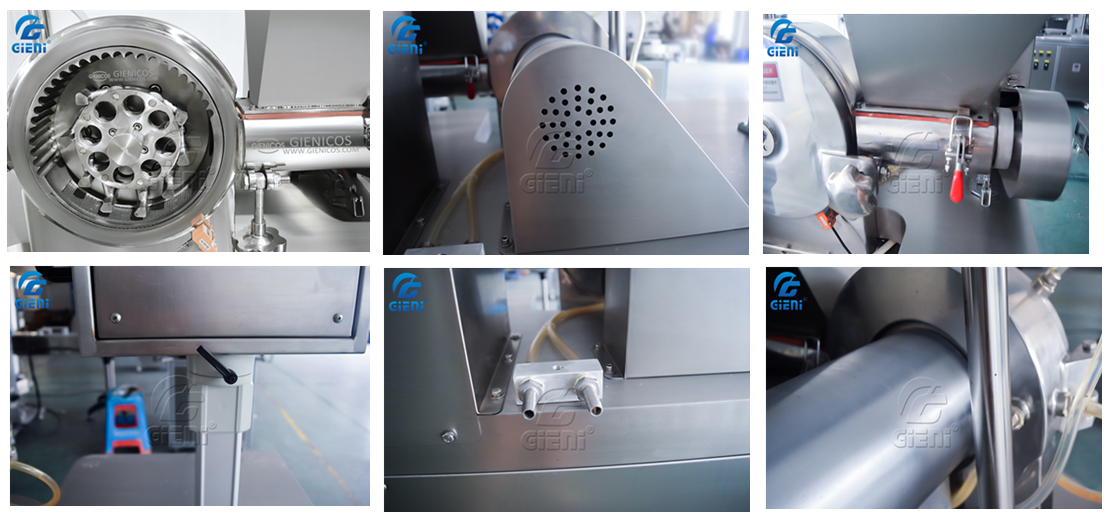

 It adopts rotary multi-hammer structure to hamming the powder material, which makes powder to be sheared off, scraped, scattered and pass through the mesh in high speed to achieve the requested fineness.

Hammer chamber has cooling system, which effectively avoid the raw material from being thernak anaphylaxis.
Auto screw type powder feeding, speed adjustable;
Powder bucket is automatically lifted up and down,  convenient for powder discharge.

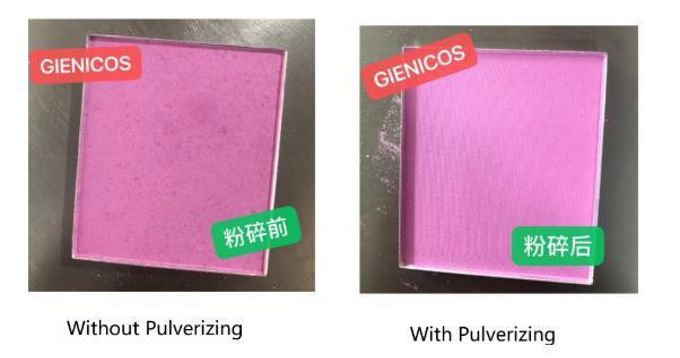

 Hammers rotate high speed ensures the powder material well homogenized after oil spraying. In this case, b
y using our pulverizer, the oil spot can be eliminated 99% and powders become softer when you touch it. Some people prefer crusher, but this is not workable on eliminating oil spots.

use SIEMENZ motor, more table


ModelJMP08
Capacity
7.5KW, 20-50kgs/h
Power/Rotary Speed
7200RPM
Material InletScrew feeding, speed is adjustable
Hammer
8PCS
Crushing Motor7.5kw
Sieve Size1.0mm/1.5mm/2.0mm
Table Height800mm
VoltageAC380V,3P,50/60HZ
Weight400kgs
