JLF-3 Rotary Type Loose Powder Filling Machine

The machine is especially for loose type powder products.This new model has automatic weigher which will reject unqualified products.

Dimension : 670*660*1405mm(L*W*H)
Voltage : AC220V, 1P, 50/60HZ
Power : 0.4KW
Working pressure : 0.6~0.8Mpa, ≥300L/min
Company:
Email:
Message:


The machine is especially for loose type products. It adopts different filling to aim at different manufacture requirements. The ration is precision, cleaning is convenient and operator is easy.This new model has automatic weigher and working platform.

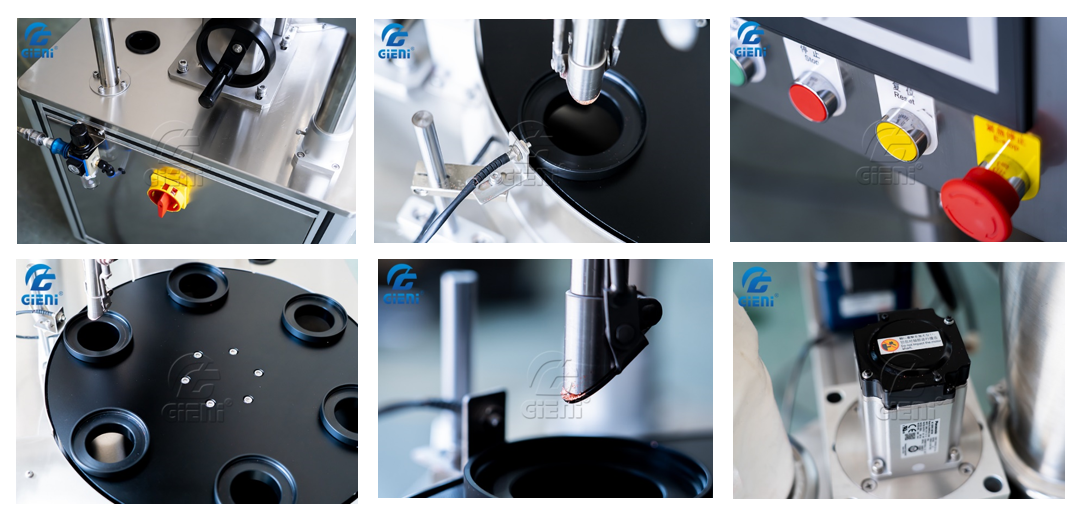

◆ It adopts screw feeding, with automatic calibration function.

Screw feeding adopts servo motor driven, high precision control system.

Weighing sensor adopts German Brand.

Operation system adopts human-machine interface system;

Rotary type is easy to operate.


Model

JLF-3

Outer dimension

670*660*1405mm(L*W*H

Voltage

AC220V,1P,50/60HZ

Power

0.4 KW

Air supply

0.6-0.8Mpa

Output

900-1800 psc/hour

Tank volume

26L(customization

Weight

220kg
