JBC-3 Bottom Up Powder Compacting Machine

It is suitable for compacting cosmetic powders,such as face powder,powder cake,blusher and eyeshadow.

Dimension : 1795x910x2010mm (LxWxH)
Voltage : AC380V,3P,50/60HZ
Power : 4.5KW
Working pressure : 6-7 Mpa
Company:
Email:
Message:


JBC-3 Bottom Up Powder Compact Machine is suitable for cosmetic powders, such as face powder, blusher and eyeshadow. It can be used for handling a wide range of formulations. The machine can press embossed, engraved cakes and domes. The output is 720-1080pcs/hour depending on pan size and powder formula.




 One set press mold includes top, middle, and bottom which are installed inside the machine to reduce the wear loss;

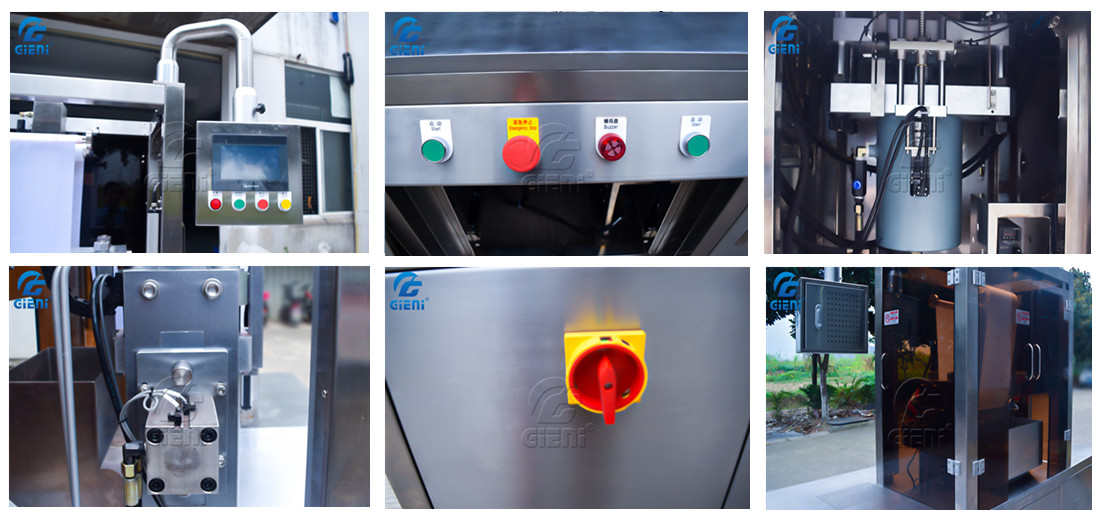

◆ Pressing from bottom to top, oil pressure is adjustable to achieve good performance for the powder compacting.

◆ Extended safety sensor(Taiwan FOTEK) for protecting the operator.

◆ Adopting servo motor to control the filling volume,use PLC system, easy to operate.

 Fully hydraulic driven system ensures perfectly stable running.

◆ With hopper for storage aluminum pan,save manual operation time.

◆ The number of times of the powder feeding,powder pressing,cloth rolling, etc. can be adjusted on the touch screen.

Voltage220V/380,3P, 50/60HZ
Power4.5KW
Working pressure6-7Mpa
Max pressure70bars
Dimensions1795(L) ×910(W) ×2010(H)mm
Weight800KG
Operator1-2 Person
Max Capacity2-3 moulds/min
Pans available on each mold6pcs(acc.to size of aluminum pan)
Max output pressure of oil hydraulic15tons
