What is the working principle of the labeling machine?

Date:2021/8/26 12:58:02



At the beginning of the working process, the box is fed to the paste labeling machine at a constant speed on the conveyor belt. The mechanical fixing device separates the boxes by a fixed distance and pushes the boxes along the conveyor belt. The mechanical system of the labeling machine includes a driving wheel, a labeling wheel and a reel. The driving wheel drags the label intermittently The tape moves, the label tape is pulled out from the reel, and the labeling wheel will press the label tape on the box through the paste labeling machine wheel. An open-loop displacement control is used on the reel to maintain the tension of the label tape. Because the labels are closely connected to each other on the label tape, the label tape must constantly start and stop.

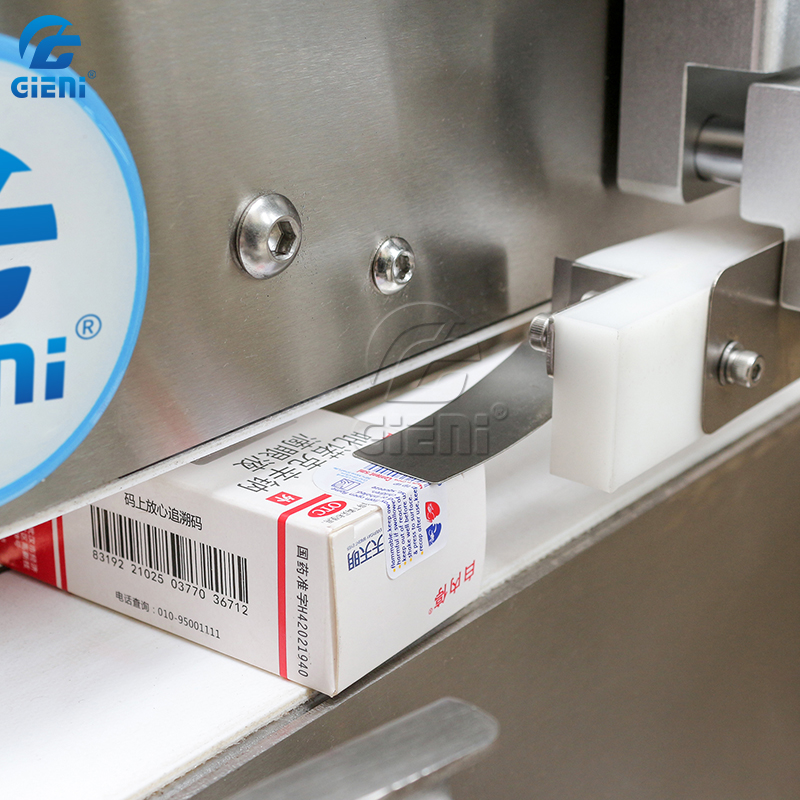

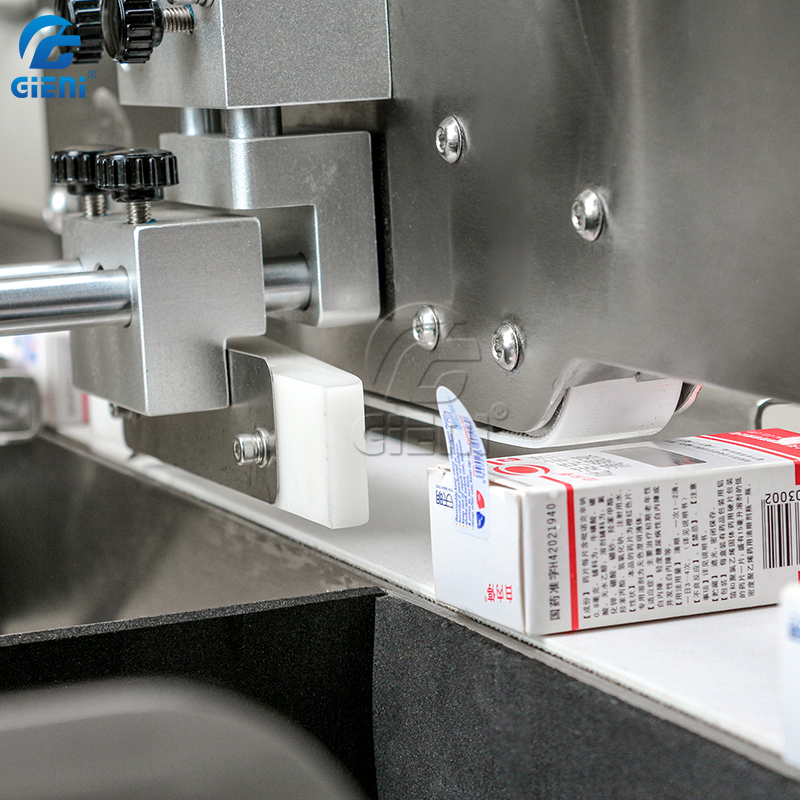

The label is attached to the box when the labeling wheel moves at the same speed as the box. When the conveyor belt reaches a certain position, the label belt drive wheel will accelerate to a speed that matches the conveyor belt, and after the label is attached, it will decelerate to a stop.



 Since the label belt of the labeling machine may slide, there is a registration mark on it to ensure that each label is placed correctly. The registration mark is read by a sensor. During the deceleration phase of the label tape, the drive wheel will readjust its position to correct any position errors on the label tape.
